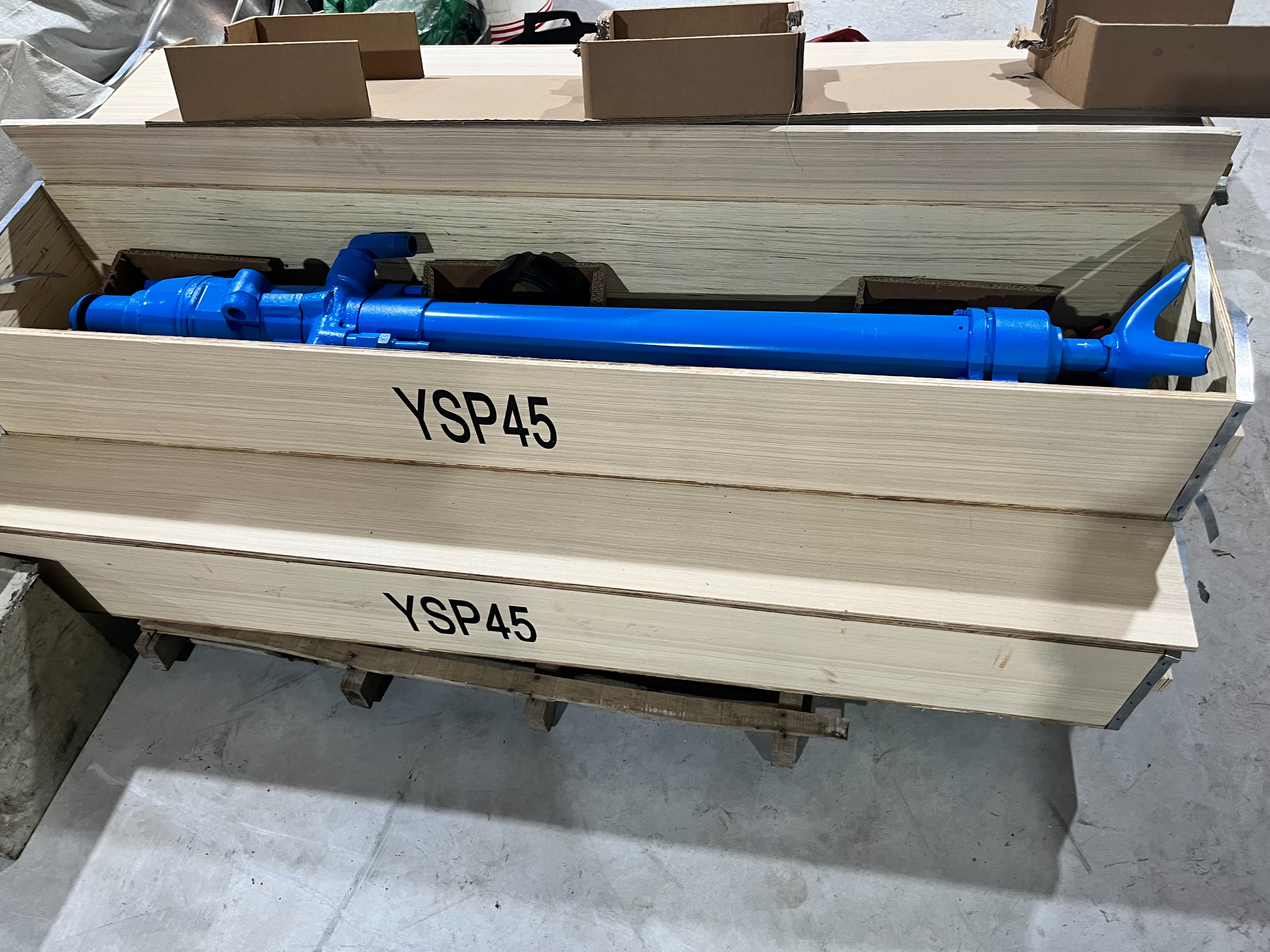

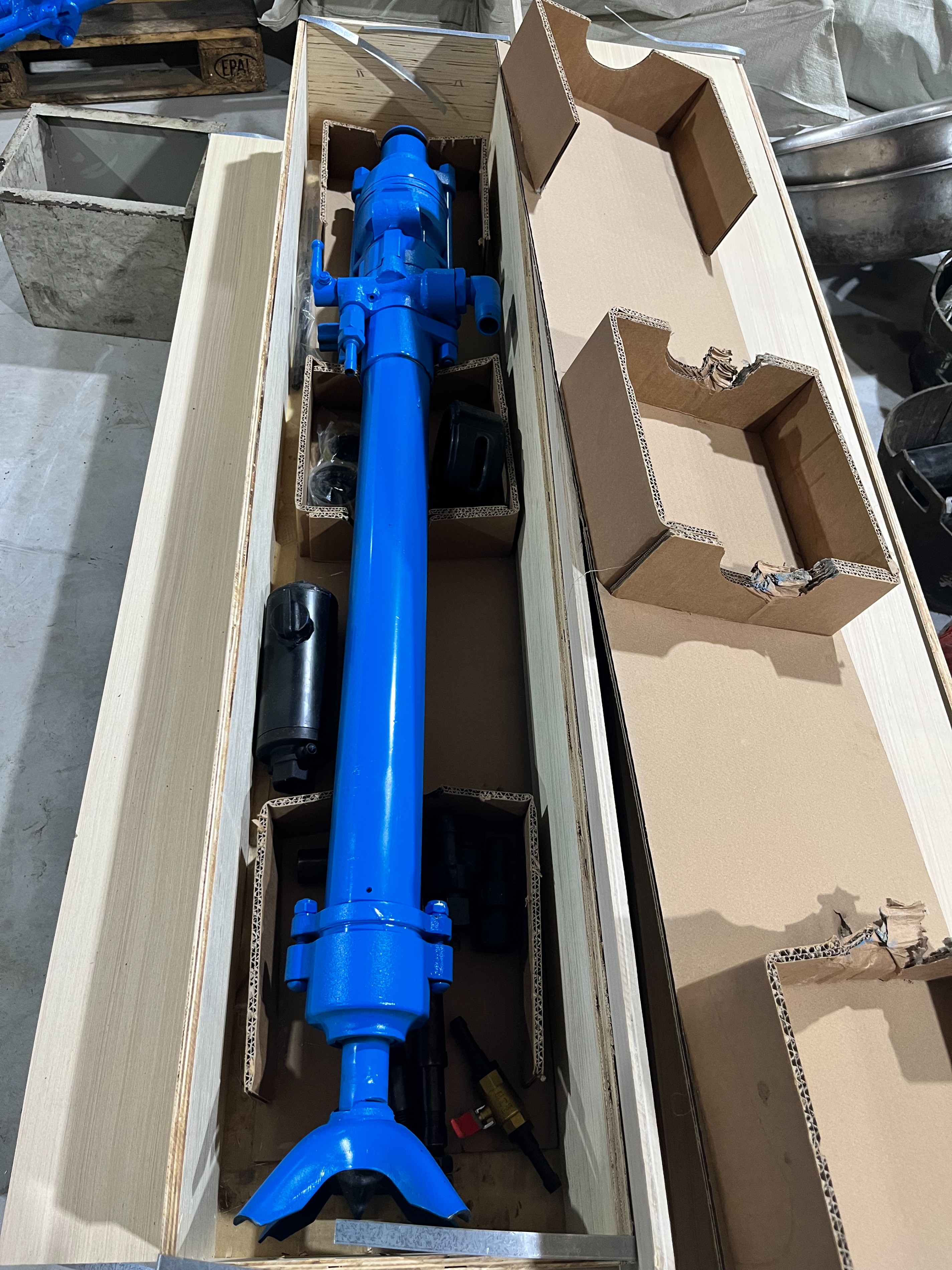

YSP45 Stoper Rock Drill

Weight(kgs)

44 kg

External Dimensions
(LxWxH)

1420X390X160 mm

Cylinder Diameter

95 mm

Piston Structure Stroke

47 mm

Airleg Propulsion Stroke

750mm

Airleg Cylinder Inner Diameter

74 mm

Working Air Pressure

0.40 Pa

0.5 Pa

0.63 Pa

Impact Frequency Of Rock Drill

≥42 Hz

≥45 Hz

≥46 Hz

Impact Energy

≥57 J

≥70 J

≥73.5 J

Rock Drilling Air Consumption

≤80 L/s

≤83 L/s

≤113.3 L/s

Torque

≥12 N.m

≥18 N.m

≥32 N.m

Water Pressure

0.3 Mpa

Air Pipe Inner Diameter

25 mm

Water Pipe Inner Diameter

13 mm

Suitable Drilling Diameter

34~42 mm

Suitable Max Drilling Depth

6 mm

Working Temperature

-30~50 ℃

Shank Size

H22X108±1 mm

FY500A Oil Lubricator

Weight

2.5 kg

Capacity

0.52 L
